Bulls Eye Sight Glass ASG

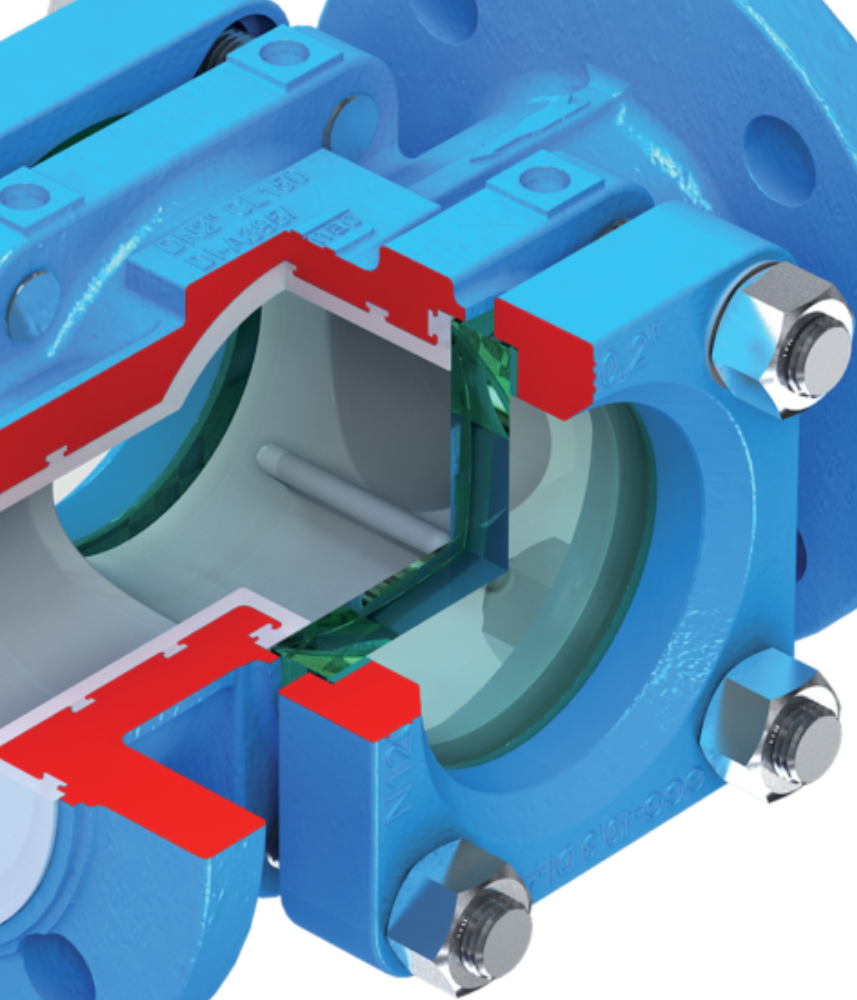

The Atomac Bulls Eye Sight Glass has a PFA lined ductile iron body. It has a pair of heavy wall Borosilicate Glass windows for clear process viewing. The sight glass is suitable for use up to 19 barg and its materials of construction are chosen to ensure long performance in the most corrosive and toxic processes. The ASG Bulls Eye sight glass has an integral moulded drip lip to give visual flow indication and CRP hold all the common sizes in stock ready for immediate dispatch.
Installation, Maintenance and General Guidance PDF
Dimensions to suit ASME 150 Flanged Piping Systems
| To suit pipework NB | Face to Face A | |
| Inches | mm | mm |
| 1″ | 25 | 152 |
| 1.1/2″ | 40 | 178 |
| 2″ | 50 | 203 |
| 3″ | 80 | 241 |
| 4″ | 100 | 292 |
| 6″ | 150 | 480 |
Dimensions to suit DIN PN/16 Flanged Piping Systems
| To suit pipework NB | Face to Face A | |
| Inches | mm | mm |
| 1″ | 25 | 160 |
| 1.1/2″ | 40 | 200 |
| 2″ | 50 | 230 |
| 3″ | 80 | 310 |
| 4″ | 100 | 350 |
| 6″ | 150 | 480 |
The ASG has external stainless steel fasteners and epoxy coated body, CRP offer various options for sight glasses like double windows, PFA lined glass for caustic duties etc.
Please note we only stock ASME 150 sightglasses as below:
| Size | Stocked Quantity |
|---|---|
| 1" | 27 |
| 1.1/2" | 14 |
| 2" | 1 |
| 3" | 0 |
| 4" | 0 |
| 6" | 1 |
