AKH2 Full Bore Ball Valve DIN PN10/16

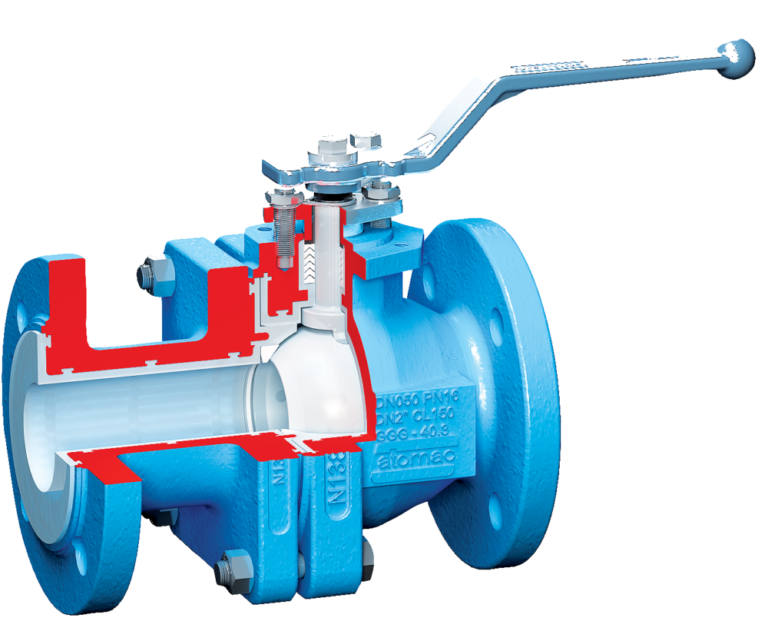

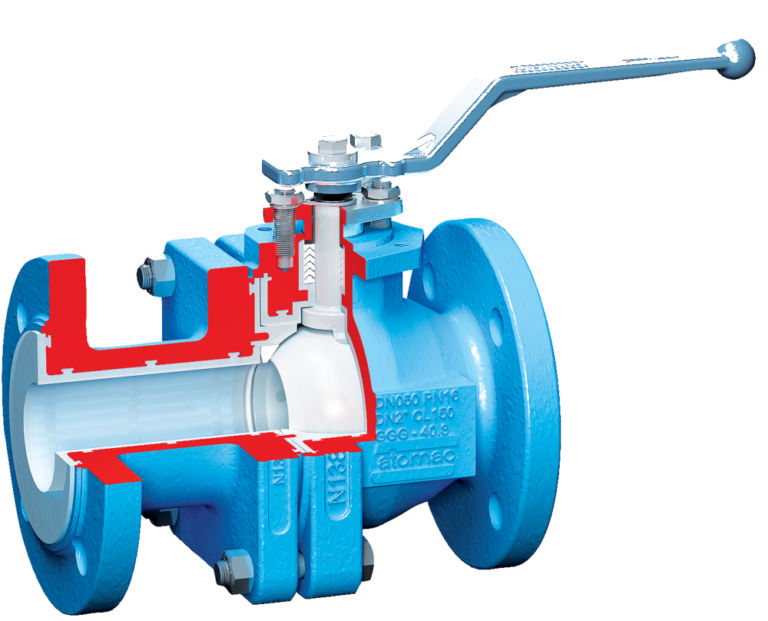

The AKH2 has been specifed as the site standard in many global chemical and pharmaceutical companies making it the world’s leading corrosion resistant fluoropolymer lined valve. They are designed to provide bubble tight shut off, have floating balls to reduce turning torque and have proven low maintenance stem seals.
Installation, Maintenance and General Guidance PDF
Whilst this page details information on the DIN PN10/16 valve, it’s also available in ASME 150 and 300 configurations, links below:
Dimensions to Suit DIN PN10/16
| Suit Pipework NB | Face – Face A | CL to end of wrench B | CL to top of wrench C | |
| Inches | mm | mm | mm | mm |
| 1/2″ | 15 | 130 | 160 | 120 |
| 3/4″ | 20 | 150 | 160 | 120 |
| 1″ | 25 | 160 | 160 | 123 |
| 1.1/2″ | 40 | 200 | 210 | 145 |
| 2″ | 50 | 230 | 210 | 160 |
| 3″ | 80 | 310 | 313 | 207 |
| 4″ | 100 | 350 | 313 | 220 |
| 6″ | 150 | 480 | 337 | 312 |
| 8″ | 200 | 457 | 450 | 373 |
| 10″ | 250 | 534 | Gear Op. | Gear Op. |
| 12″ | 300 | 610 | Gear Op. | Gear Op. |
